PilotDetect

an HOD technology

Less parts, less costs

powered by
Axiom logo

Current HOD Solutions and their challanges

Capacitive Touch on the steering wheel

  • Unreliable
  • Temperature sensitive
  • Expensive (separate sensing mat)

Camera based / AI supported

  • Non-deterministic
  • Not market ready
  • Needs extensive training for every variant
The driver of a car is holding the steering wheel with two hands.

Your Expert

Matthias Arndt

If you have any questions or suggestions, please contact us directly by email or phone:

Matthias Arndt
Head of Sales

matthias.arndt@ge-t.de
+49 172 53 95 233

New Approach: TouchNetix Pilot ID as an HOD technology

What is Pilot ID?

  • A signal of known frequency is coupled into the driver's body
  • Every passenger in the car can have a unique frequency
  • An HMI (displays, buttons, smart surfaces, …) can read the signal and distinguish frequencies if the user approaches or operates it
  • The HMI reaction can then be controlled depending on the detected user

It enables the next generation HOD.

  • Using seat heating mat as sender and steering wheel heating mat as receiver
  • If the driver holds the wheel, his unique frequency is detected
  • Excellent signal-to-noise ratio, improved reliability and stability

The system can be easily integrated into existing components.

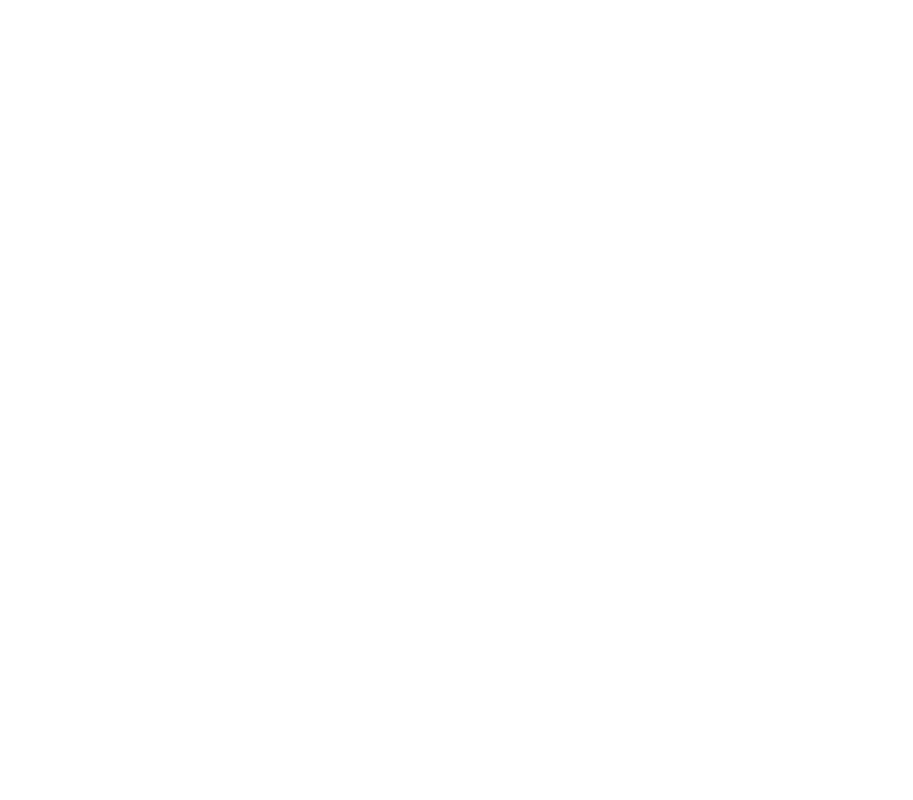

  1. Frequency Generator
  2. Seat Heating Mat
  3. Driver
  4. Steering Wheel Heating Mat
  5. Receiver Module

Heating functions of the seat and the steering wheel can be used as normal.

Potential Unleashed: Boosted performance at lower cost

Advantages and Benefits

  • Great reliability
  • Improved temperature stability
  • Better user experience for automated driving functions

Functions, ready for the future

  • Redundancy, when combined with other sensing solution, ASIL ready
  • Multi-zone detection
  • Blocking of non-driver actions

Huge savings potential

  • No additional sensing mat required, heating mat can be the receiver
  • One TouchNetix aXiom chip can cover all steering wheel functions: Switches and HOD
  • Synergy with other Pilot ID applications, only one sender required

Up to 20 % savings on system cost

(Steering wheel without airbag)

Get in Contact

Less parts, less costs
